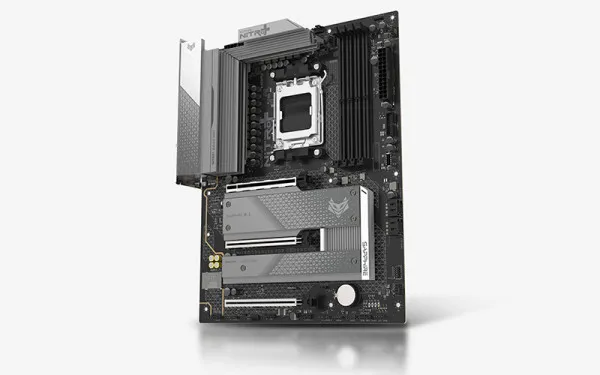

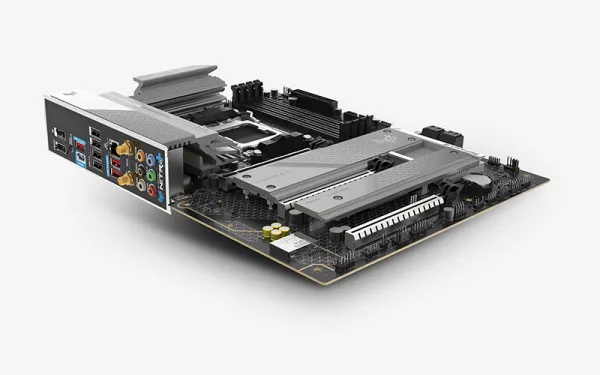

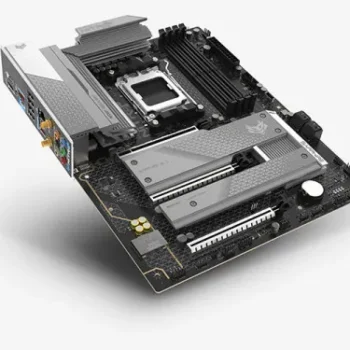

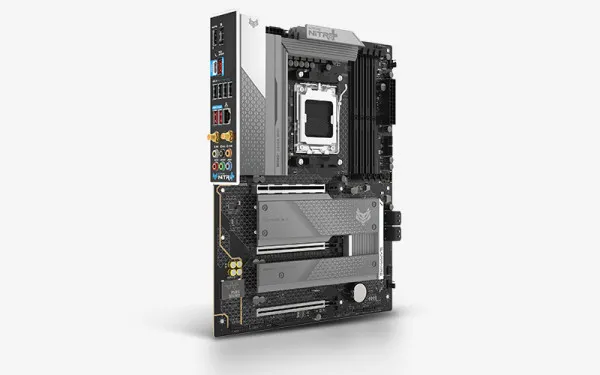

MB AM5 SAPPHIRE B850A Nitro+ WIFI 7 1xDP 1xHDMI, 52123-03-40G

Chipset

AMD® B850

Chip

Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Podrzana memorija

4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 8000 MHz(OC)

PCI-E slotovi za nadogradnju

1x PCIe 5.0 x16, 1x PCIe 4.0 x4 in 16x slot, 1x PCIe 4.0 x2 in 16x slot

Video izlazi

DisplayPort x1, HDMI x1

Audio

Realtek® ALC897 HD Audio, 7.1 Channel

Mreža

Realtek® RTL8125BG 2.5 Gigabit Ethernet
M.2 WiFi 7 Module, Support 802.11 a/b/g/n/ac/ax/be, 2.4 GHz / 5GHz / 6GHz band, Bluetooth 5.4 Support

Priključci za USB

1x USB 3.2 Gen1 (1 x Type C), 1x USB 3.2 Gen1 (2 x Type A), 1x USB 2.0 (2 x Type A)

Priključci nazad

1 × DisplayPort, 1 × HDMI ™, 1 × RJ45 LAN, 2 × Wi Fi Antenna
One-click Flash BIOS Button, 4 × USB 2.0, 3 × USB 3.2 Gen2 Type A
1 × USB 3.2 Gen2 Type C, 6 × Audio Jacks

M.2 slotovi

1x PCIe 5.0 M.2, 2x PCIe 4.0 M.2, 4x SATA

Dimenzije

ATX, 305x244mm

Debug LED

DRAM: Yellow, CPU: Red, GPU: White, Boot: Green
