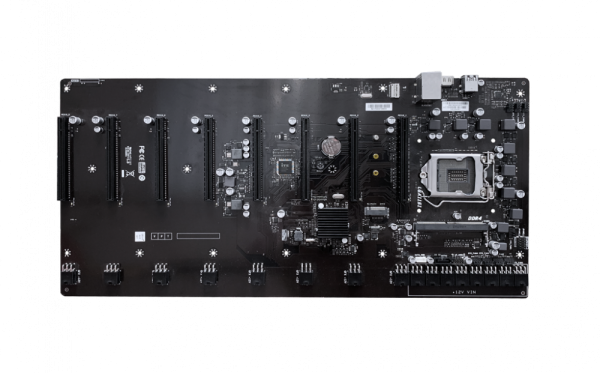

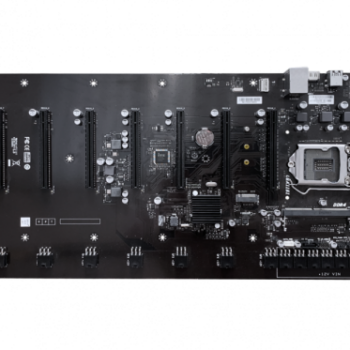

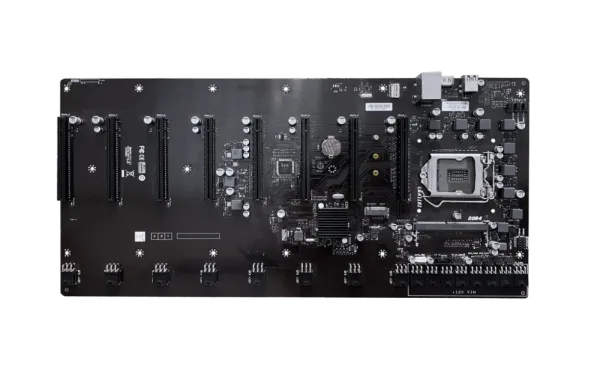

MB s1151 Biostar TB360-BTC D+

Chipset

Intel B360

CPU SUPPORT

8^th and 9^th Gen Intel Core i7 LGA 1151 Processor

8^th and 9^th Gen Intel Core i5 LGA 1151 Processor

8^th and 9^th Gen Intel Core i3 LGA 1151 Processor

8^th and 9^th Gen Intel Pentium LGA 1151 Processor

8^th and 9^th Gen Intel Celeron LGA 1151 Processor

MEMORY

1 x DDR4 SO-DIMM Memory Slot (Max Supports up to 16GB Memory)

INTEGRATED VIDEO

By CPU model

Supports DX12

Supports HDCP

STORAGE

1 x SATA III Connector (6Gb/s)

1 x M.2 (M Key) 16Gb/s Connector: Supports PCIe and SATA SSD

LAN

Realtek RTL8111H – 10/100/1000Mb/s Controller

USB

6 x USB 2.0 Ports (4 on rear I/Os and 2 via internal headers)

EXPANSION SLOT

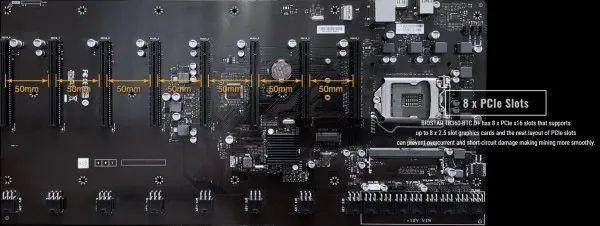

8 x PCIe x16 Slots

REAR I/O

4 x USB 2.0 Ports

1 x HDMI Connector

1 x LAN Port

INTERNAL I/O

1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

1 x SATA III Connector (6Gb/s)

1 x SATA Power Connector (for rear USB power enhancement)

1 x Front Panel Header

1 x CPU Fan Connector

7 x System Fan Connectors

1 x Clear CMOS Header

H/W MONITORING

CPU / System Temperature Monitoring

CPU / System Fan Monitoring

Smart / Manual CPU Fan Control

System Voltage Monitoring

DIMENSION

Special Form Factor Dimension: 48.5cm x 23.5cm (W x L)

OS SUPPORT

Supports Windows 10(x64)

*BIOSTAR reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE

BullGuard

ACCESSORIES

2 x SATA Cables

1 x I/O Shield

1 x DVD Driver

1 x User Manual

FEATURES

Supports 100% Solid capacitor

Supports Charger Booster

Supports BIOS Online Update
