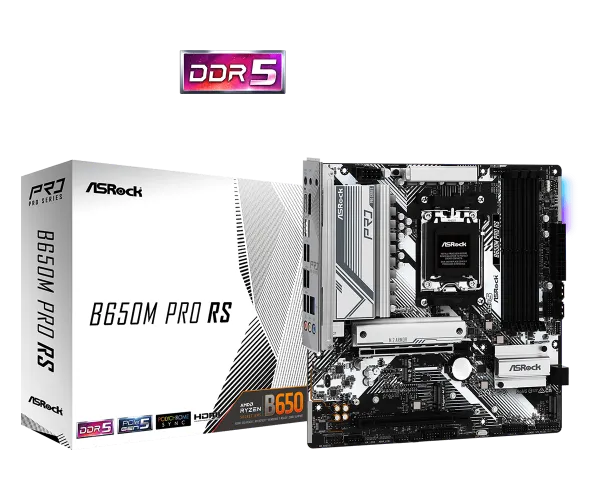

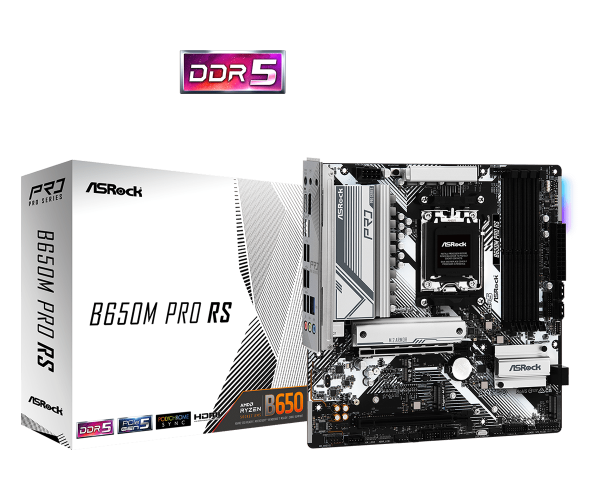

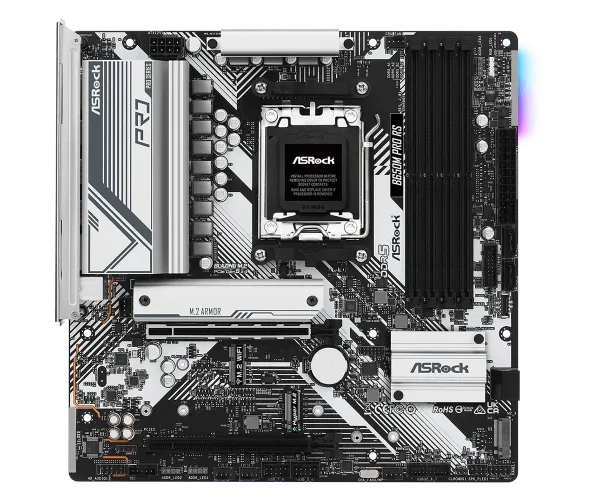

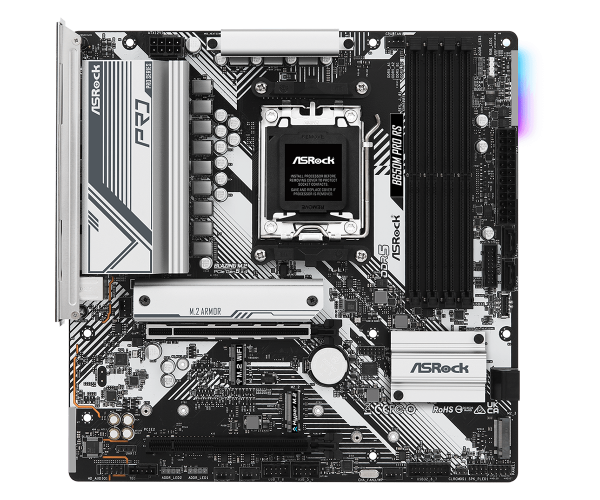

MB AM5 ASRock B650M PRO RS 90-MXBLP0-A0UAYZ

Šifra proizvoda: DC31278

rsd18,241.39

Na zalihama

Na zalihama

    • CPU
      – Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
    • Chipset
      – AMD B650
    • Memory
      – Dual Channel DDR5 Memory Technology
      – 4 x DDR5 DIMM Slots
      – Supports DDR5 non-ECC, un-buffered memory up to 6000+(OC)
      – Max. capacity of system memory: 192GB
      – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
    • BIOS
      – 256Mb AMI UEFI Legal BIOS with GUI support
    • Graphics
      Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
      – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
      – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
    • Audio
      – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
      – Nahimic Audio
    • LAN
      – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
      – Dragon RTL8125BG
      – Supports Dragon 2.5G LAN Software
      – Smart Auto Adjust Bandwidth Control
      – Visual User Friendly UI
      – Visual Network Usage Statistics
      – Optimized Default Setting for Game, Browser, and Streaming Modes
      – User Customized Priority Control



  • Slots
    CPU:
    – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    – 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
    Chipset:
    – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

    – Supports AMD CrossFire™
    – 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
    Chipset:
    – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    – 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
    – 4 x SATA3 6.0 Gb/s Connectors

    *Supports NVMe SSD as boot disks
  • RAID
    – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

    *Requires additional M.2 NVMe expansion cards to support RAID 10
  • USB
    – 1 x USB 3.2 Gen2 Type-C (Rear)
    – 1 x USB 3.2 Gen2 Type-A (Rear)
    – 1 x USB 3.2 Gen1 Type-C (Front)
    – 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
    – 8 x USB 2.0 (4 Rear, 4 Front)

    *All USB ports support ESD Protection
  • Connector
    – 1 x SPI TPM Header
    – 1 x Power LED and Speaker Header
    – 1 x RGB LED Header*
    – 3 x Addressable LED Headers**
    – 1 x CPU Fan Connector (4-pin)***
    – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    – 1 x 24 pin ATX Power Connector
    – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    – 1 x Front Panel Audio Connector
    – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    – 1 x Front Panel Type C USB 3.2 Gen1 Header

    *Supports in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***CPU_FAN1 supports the fan power up to 1A (12W).

    ****CPU_FAN2/WP supports the fan power up to 2A (24W).

    *****CHA_FAN1~3/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

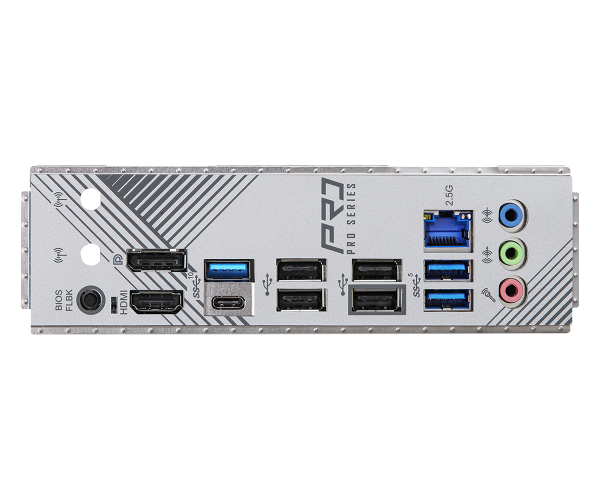

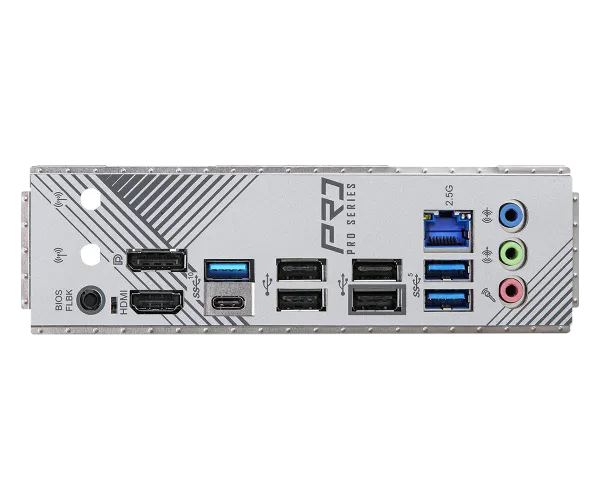

  • Rear Panel I/O
    – 2 x Antenna Mounting Points
    – 1 x HDMI Port
    – 1 x DisplayPort 1.4
    – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
    – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
    – 2 x USB 3.2 Gen1 Ports
    – 4 x USB 2.0 Ports
    – 1 x RJ-45 LAN Port
    – 1 x BIOS Flashback Button
    – HD Audio Jacks: Line in / Front Speaker / Microphone





Brend

ASRock

Procesorsko ležište

AMD® AM5

Tip memorije

DDR5
