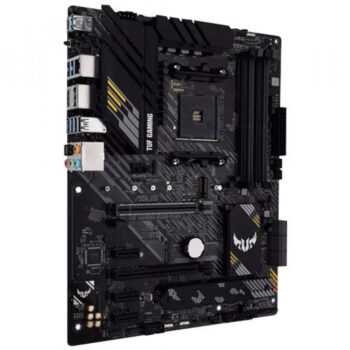

MB AM4 TUF GAMING B550-PLUS
18.440,66 rsd
Na zalihama
Na zalihama
| Podnožje: | AMD® AM4 |
| Čipset: | AMD® B550 |
| Tip procesora: | AMD |
| Format ploče: | ATX |
| Podržani procesori: | – AMD Ryzen procesori treće generacije sa AM4 podnožjem |
| Podržana memorija: | DDR4 |
| Memorija: | 3rd Gen AMD Ryzen™ Processors – 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory – Next Generation AMD Ryzen PRO Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory – Dual Channel Memory Architecture |
| Multi-GPU podrška: | – AMD 2-Way CrossFireX Technology |
| Integrisana grafička karta: | – 1 x DisplayPort 1.4 – 1 x HDMI 2.1(4K@60HZ) |
| Slotovi za proširenje: | 3rd Gen AMD Ryzen Processors – 1 x PCIe 4.0 x16 (x16 mode) AMD B550 Chipset – 1 x PCIe 3.0 x16 (x4 mode) – 3 x PCIe 3.0 x1 |
| Skladište: | Ukupno podržano 2 x M.2 slota i 6 x SATA 6Gb/s portova 3rd Gen AMD Ryzen Processors: – 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset: – 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) – 6 x SATA 6Gb/s port(s) – Podržava Raid 0, 1, 10 |
| Mrežna karta: | – Realtek RTL8125B 2.5Gb Ethernet – TUF LANGuard |
| Zvučna karta: | – Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC |
| USB: | Rear USB Port ( Total 8 ) – 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) – 4 x USB 3.2 Gen 1 port(s)( x Type-A) – 2 x USB 2.0 port(s)( x Type-A) Front USB Port ( Total 6 ) – 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) – 4 x USB 2.0 port(s)(4 x Type-A) |
| Konektori na zadnjoj strani: | – 1 x DisplayPort – 1 x HDMI – 1 x LAN (2.5G) port(s) – 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C) – 4 x USB 3.2 Gen 1 (blue) Type-A – 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack) – 1 x Optical S/PDIF out – 5 x Audio jack(s) – 1 x BIOS FlashBack Button(s) |
| Interni konektori: | – 1 x CPU Fan connector(s) – 1 x CPU OPT Fan connector(s) – 3 x Chassis Fan connector(s) – 1 x AIO_PUMP connector – 2 x Aura RGB Strip Headers – 1 x Addressable Gen 2 header(s) – 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) – 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) – 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) – 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) – 1 x M.2 with E key for Wi-Fi module – 1 x SPI TPM header – 6 x SATA 6Gb/s connector(s) – 1 x 24-pin EATX Power connector(s) – 1 x 8-pin EATX 12V Power connectors – 1 x Front panel audio connector(s) (AAFP) – 1 x Thermal sensor connector(s) – 1 x Clear CMOS jumper(s) – 1 x System panel connector – 1 x COM port header |
| Procesorsko ležište |
AMD® AM4 |
|---|---|
| Tip memorije |
DDR4 |
