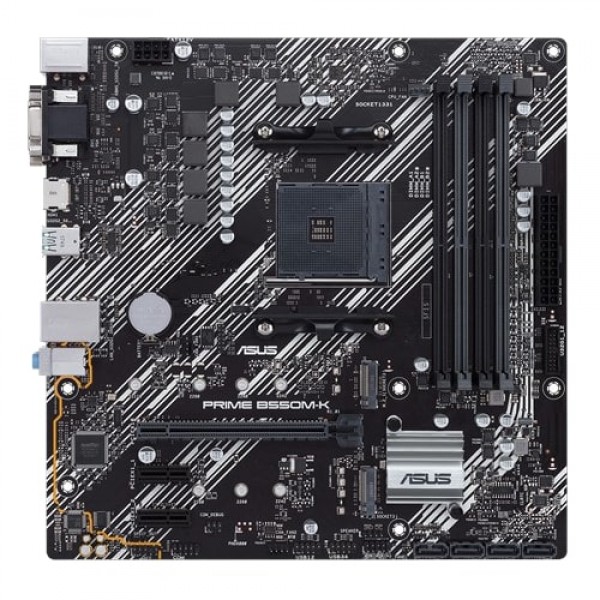

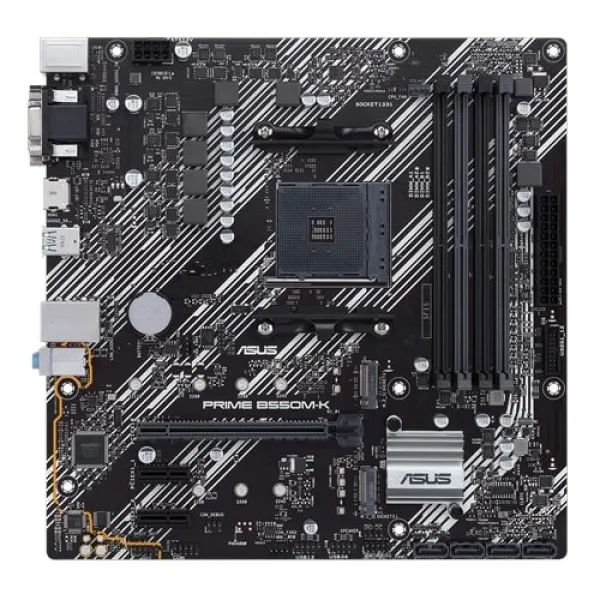

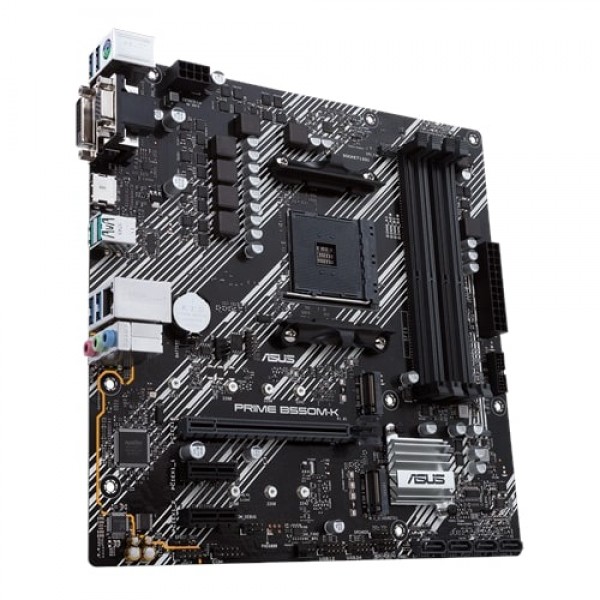

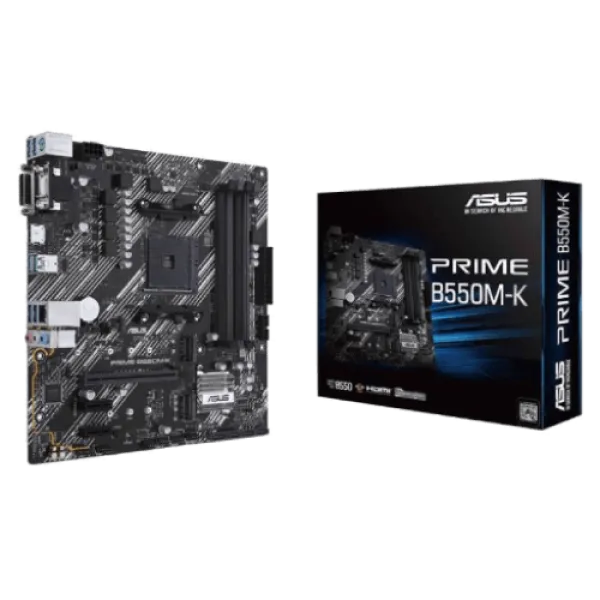

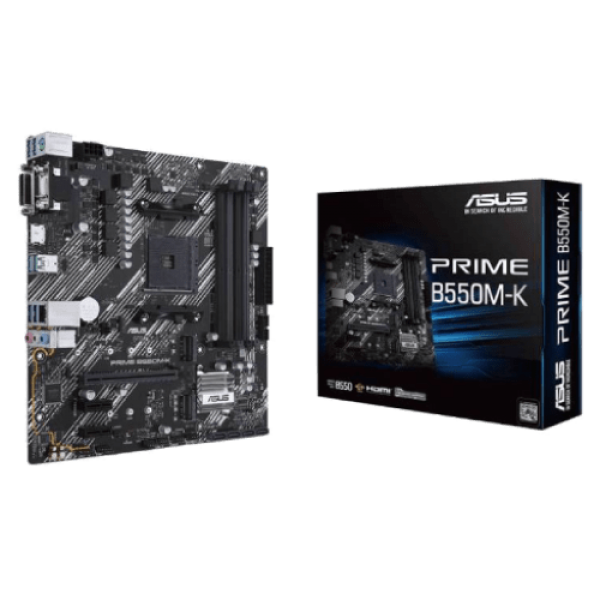

MB AM4 ASUS PRIME B550M-K



рсд11,524.58Besplatna isporuka!

Na zalihama

Količina
SKU: DC21774. Kategorija: .

Opis

Podnožje AMD® AM4
Čipset AMD® B550
Tip procesora AMD
Format ploče Micro ATX
Podržani procesori – Ugrađeni AMD AM4 podnožje za 3rd Gen AMD Ryzen i 3rd Gen AMD Ryzen sa Radeon grafičkim procesorima
Podržana memorija DDR4
Memorija – 3rd Gen AMD Ryzen Procesora
– 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered memoriju
– 3rd Gen AMD Ryzen sa Radeon grafičkim procesorima
– 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered memoriju
– Dual Channel Memory Architecture
– ECC Memory (ECC mode) podrška varira od CPU
Integrisana grafička karta – 1 x D-Sub
– 1 x DVI-D
– 1 x HDMI 2.1(4K@60HZ)
Slotovi za proširenje – 3rd Gen AMD Ryzen procesori
– 1 x PCIe 4.0 x16 (x16 mode)
– 3rd Gen AMD Ryzen sa Radeon grafičkim procesorima
– 1 x PCIe 3.0 x16 (x16 mode)
– AMD B550 Chipset
– 2 x PCIe 3.0 x1
Skladište Maksimalno podržava 2 x M.2 slot(s) i 4 x SATA 6Gb/s porta
– 3rd Gen AMD Ryzen procesori:
– 1 x M.2_1 podnožje 3, sa M Key, tip 2242/2260/2280/22110(PCIE 4.0 x4 i SATA modes) storage uređaja
– 3rd Gen AMD Ryzen sa Radeon grafičkim procesorima:
– 1 x M.2_1 podnožje 3, sa M Key, tip 2242/2260/2280/22110(PCIE 3.0 x4 i SATA modes) storage uređaja
– AMD B550 Chipset :
– 1 x M.2_2 podnožje 3, sa M Key, tip 2242/2260/2280 (PCIE 3.0 x4 i SATA modes) storage uređaja
– 4 x SATA 6Gb/s port(s)
– Podržava Raid 0, 1, 10
Mrežna karta – Realtek RTL8111H 1Gb Ethernet
– ASUS LANGuard
Zvučna karta Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
– Podržava: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
– LED-illuminated design
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
USB USB portovi sa zadnje strane ( Total 6 )
– 2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
– 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

USB portovi sa prednje strane ( Total 6 )
– 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
– 4 x USB 2.0 port(s)(4 x Type-A)

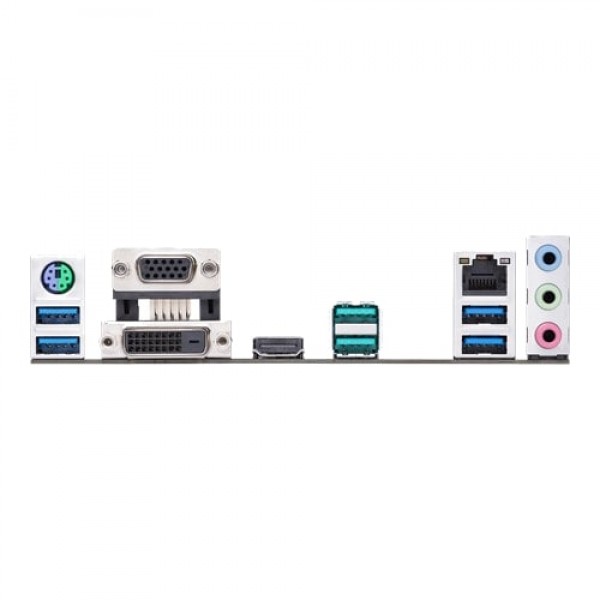

Konektori na zadnjoj strani – 1 x PS/2 keyboard/mouse combo port(s)
– 1 x DVI-D
– 1 x D-Sub
– 1 x HDMI
– 1 x LAN (RJ45) port(s)
– 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
– 4 x USB 3.2 Gen 1 (blue) Type-A
– 3 x Audio jack(s)
Interni konektori – 1 x CPU Fan connector(s)
– 2 x Chassis Fan connector(s)
– 1 x USB 3.2 Gen 1(up to 5Gbps) konektor podržava dodatna 2 USB 3.2 Gen 1 port(s)
– 2 x USB 2.0 konektora podržavaju dodatna 4 USB 2.0 port(s)
– 1 x M.2 podnožje 3 sa M Key, tip 2242/2260/2280/22110 storage ueđaja (SATA mode & X4 PCIE mode)
– 1 x M.2 podnožje 3 sa M Key, tip 2242/2260/2280 storage uređaja (SATA mode & X4 PCIE mode)
– 1 x SPI TPM header
– 4 x SATA 6Gb/s connector(s)
– 1 x S/PDIF out header(s)
– 1 x 24-pin EATX Power connector(s)
– 1 x 8-pin EATX 12V Power connectors
– 1 x Front panel audio connector(s) (AAFP)
– 1 x Clear CMOS jumper(s)
– 1 x System panel connector
– 1 x COM port header
– 1 x Speaker connector
BIOS – 256 Mb Flash ROM, UEFI AMI BIOS

Dodatne informacije

Brend

Asus
Procesorsko ležište

AMD® AM4
Tip memorije

DDR4
Format
