MB AM4 AsRock B450M PRO4 R2.0

Šifra proizvoda: DC36975 Brand:

rsd11,015.36

Na zalihama

Na zalihama

Tip procesora: AMD
Podnožje: AMD® AM4
Čipset: AMD® B450M
Format ploče: Micro ATX
Podržana memorija: DDR4
Podržani procesori: Podržava AMD AM4 Socket Ryzen 2000, 3000, 4000 G, 5000 i 5000 G Desktop Procesore
Memorija: Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slota AMD Ryzen series CPUs (Vermeer) podržava DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Matisse) podržava DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series APUs (Cezanne) podržava DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series APUs (Renoir) podržava DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Pinnacle Ridge) podržava DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Picasso) podržava DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* AMD Ryzen series CPUs (Summit Ridge) podržava DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Raven Ridge) podržava DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory Maksimalni kapacitet sistemske memorije:: 128GB** Podržava Extreme Memory Profile (XMP) memory modules
Slotovi za proširenje: AMD Ryzen CPU (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge i Pinnacle Ridge) 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) AMD Ryzen series CPUs (Picasso, Raven Ridge) 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) AMD Athlon series CPUs 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)* 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) 1 x PCI Express 2.0 x1 Slot Podržava AMD Quad CrossFireX i CrossFire
Skladište: 4 x SATA3 6.0 Gb/s konektora, podržava RAID (RAID 0, RAID 1 i RAID 10), NCQ, AHCI i Hot Plug* – 1 x Ultra M.2 Socket (M2_1), podržava M Key type 2242/2260/2280 M.2 PCI Express module do Gen3 x4 (32 Gb/s) (sa Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) ili Gen3 x2 (16 Gb/s) (sa Athlon series APU)** – 1 x M.2 Socket (M2_2), podržava M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module
Mrežna karta: Realtek RTL8111H PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Zvučna karta: Realtek ALC892/897 Audio Codec 7.1 CH HD Audio with Content Protection

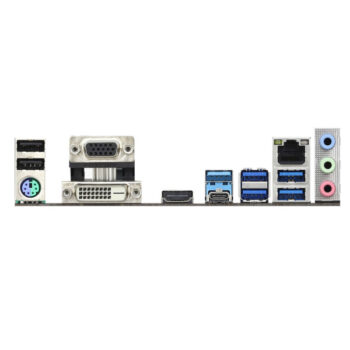

Konektori na zadnjoj strani: 1 x PS/2 kombo port za miš/tastaturu 1 x VGA 1 x DVI-D 1 x HDMI 2 x USB-A 2.0 Ports 1 x USB-A 3.2 Gen2 1 x USB-C 3.2 Gen2 4 x USB-A 3.2 Gen1 1 x RJ-45 3 x audio port
Interni konektori: 1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 1 x Addressable LED Header** 1 x AMD Fan LED Header*** 1 x CPU Fan Connector (4-pin)**** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Podržava 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Podržavas 2 USB 3.2 Gen1 ports)

Brend

ASRock

Procesorsko ležište

AMD® AM4
