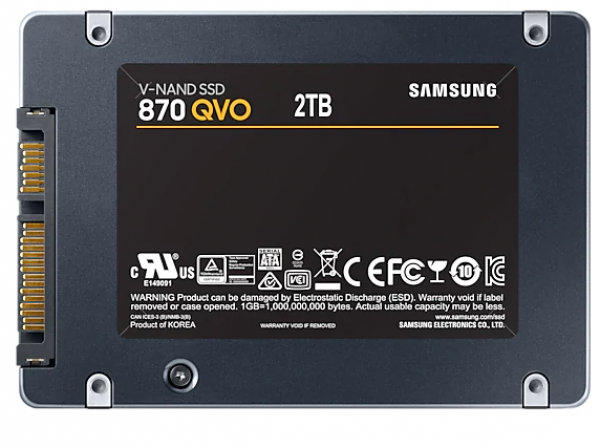

- ApplicationClient PCs
- Capacity2,000 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
- Form Factor2.5 inch
- InterfaceSATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
- Dimension (WxHxD)100 X 69.85 X 6.8 (mm)
- WeightApporx. 46.0g Weight
- Storage MemorySamsung V-NAND 4bit MLC
- ControllerSamsung MKX Controller
- Cache MemorySamsung 2 GB Low Power DDR4 SDRAM
Special Feature
- TRIM SupportTRIM Supported
- S.M.A.R.T SupportS.M.A.R.T Supported
- GC (Garbage Collection)Auto Garbage Collection Algorithm
- Encryption SupportAES 256-bit Encryption (Class 0),TCG/Opal, IEEE1667 (Encrypted drive)
- WWN SupportWorld Wide Name supported
- Device Sleep Mode SupportYes
Performance
- Sequential ReadUp to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration
- Sequential WriteUp to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
- Random Read (4KB, QD32)Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
- Random Write (4KB, QD32)Up to 88,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
- Random Read (4KB, QD1)Up to 11,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
- Random Write (4KB, QD1)Up to 35,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
Environment
- Average Power Consumption (system level)Average: 3.0 W *Maximum: 5.0 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
- Power consumption (Idle)Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
- Allowable Voltage5V ± 5% Allowable voltage
- Reliability (MTBF)1.5 Million Hours Reliability (MTBF)
- Operating Temperature0 – 70 ℃ Operating Temperature
- Shock1,500 G & 0.5 ms (Half sine)
Accessories
- Installation KitNot Available
Software
- Management SWMagician Software for SSD management
