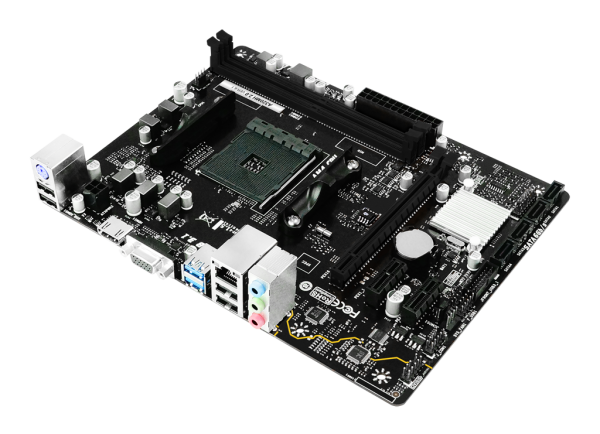

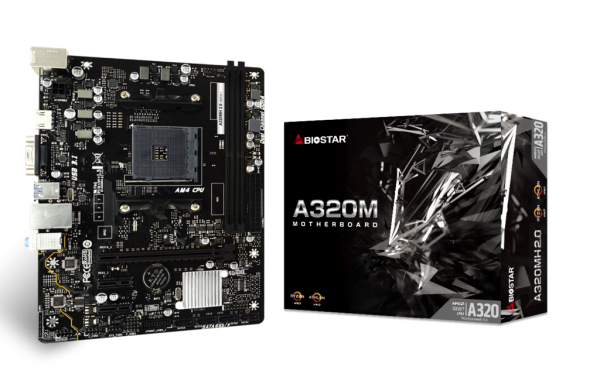

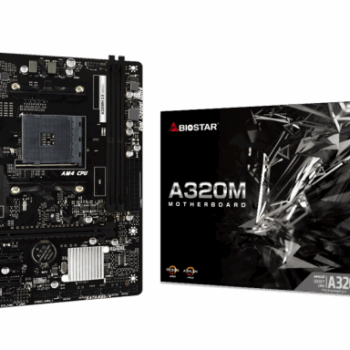

MB AM4 Biostar A320MH 2.0 2xDDR4/HDMI/VGA

-AMD A-series APU/Ryzen CPU/NPU for Socket AM4

-Maximum CPU TDP (Thermal Desing Power) : 95W

-Support Dual Channel DDR4 2933/2667/2133/1866 MHz

-Support Non-ECC & ECC Un-buffered DIMM Memory modules

-2 x DDR4 DIMM Memory Slot

-Max. Supports up to 32GB Memory

-DDR4 2933 for AMD Ryzen CPU

-1 x PCI-E 3.0 x 16 Slot (x16 for Ryzen CPU only, NPU/APU run at x8 speed)

-2 x PCI-E 3.0 x1 Slots

-4x SATA III Connectors

-Support SATA RAID : 0,1,10

Realtek RLT8111H-10/100/1000Mb/s Contoller

-2x USB 3.1 Gen1 Ports

– 1 x USB 3.1 Gen1 Header

– 4 x USB 2.0 Ports

– 2 x USB 2.0 Header

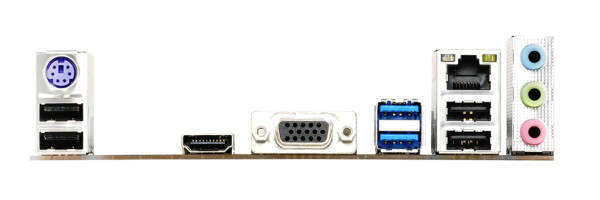

– 1 x PS/2 Keyboard/Mouse

– 2 x USB 3.1 Gen1 Ports

– 4 x USB 2.0 Ports

– 1 x HDMI Connector, resolution up to 4096 x 2160 @24Hz or 3840 x 2160 @30Hz

– 1 x VGA Port, resolution up to 1920 x 1200 @60Hz

– 1 x LAN port

– 3 x Audio Jacks

 -1 x USB 3.1 Gen1 Header

– 2 x USB 2.0 Headers

– 4 x SATA3 6Gb/s Connectors

– 1 x Front Audio Header

– 1 x Front Panel Header

– 1 x CPU Fan Connector

– 1 x System Fan Connector

– 1 x COM Port Header
